EA630 Plus Rugged Smartphone
EA630 Plus Rugged Smartphone - Image 2

EA630 Plus Rugged Smartphone

Integrated 2D Barcode Scanner｜6” Gorilla Glass Display and IP65 rating｜Android 11 with 4G/64G memory

The Unitech EA630 Plus is a 6-inch rugged mobile smartphone offering 80% screen to body ratio, versatile functionality, and powerful data collection. Specially designed for portability, the EA630 Plus combines compact and durable design making it an ideal tool to increase efficiency in the retail, hospitality and light-duty field service sectors.

Features

• Android 11 OS with GMS Certification

• 6 inch rugged smartphone with a screen-to-body ratio of over 80%
• Rugged: Corning® Gorilla® Glass 5 touch display, IP65 rated, and 4-feet drop resistance (5-feet with boot case)
• Long-lasting removable 4000mAh battery
• Support Bluetooth® 5 / dual bands WLAN with fast roaming / 4G LTE Support MDM
• Software Solutions and utilities such as AirWatch, SOTI, Ivanti, Wavelink, and MoboLink.

Categories: ,

Description

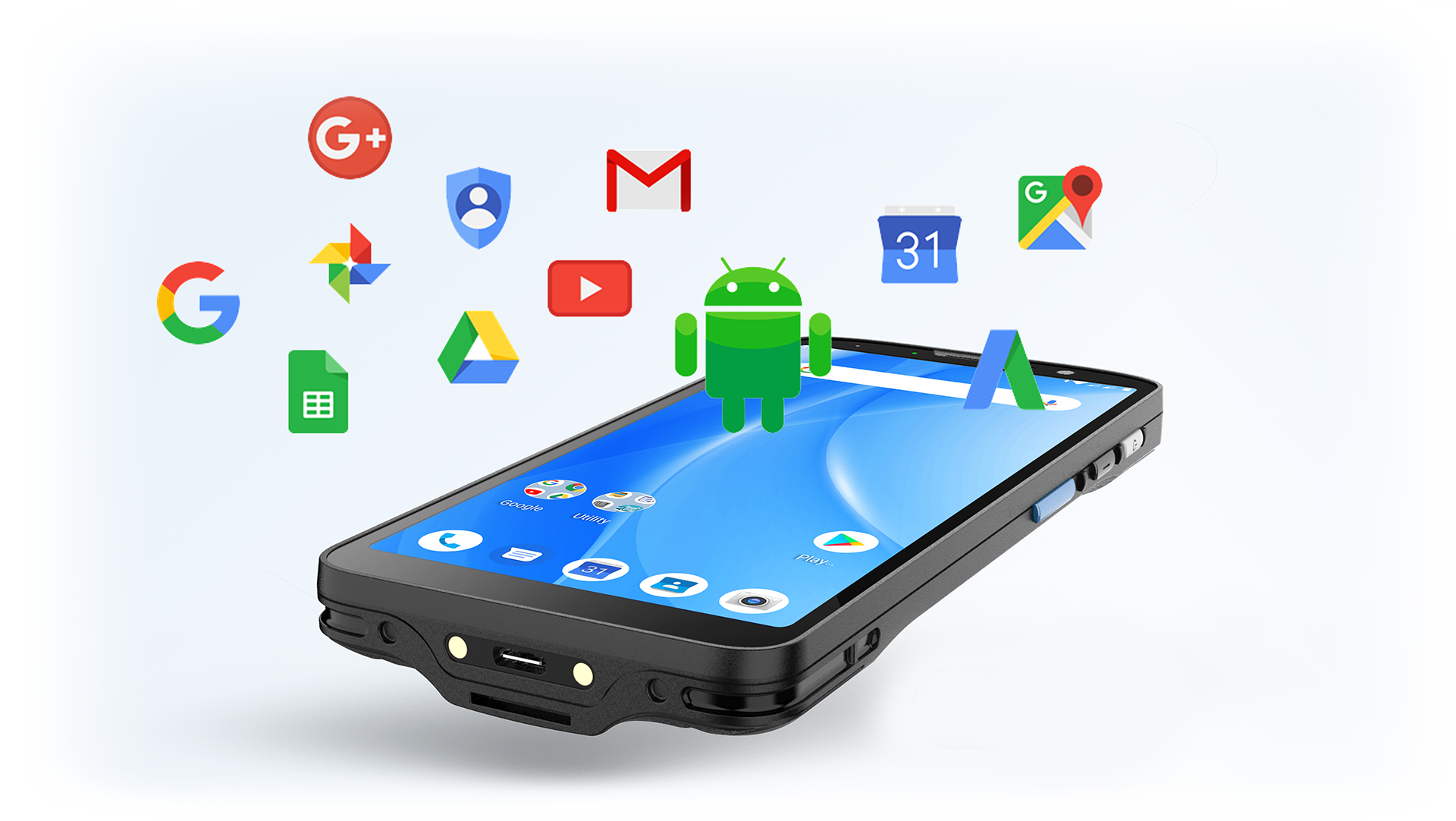

Upgrade to Android 11 OS with GMS Certification



• Advanced 64-bit Octa-core CPU (1.8 GHz) with 4 GB RAM / 64 GB Flash
•Google Certification: Android Compatibility Test Suite (CTS) / Google Mobile Service (GMS)







Android 11
Operating System		GMS
Certification		Octa-Core
CPU

4 GB RAM
64 GB Flash

Note: Learn more about Android Security bulletin information
Android 11
Operating System		GMS
Certification		Octa-Core
CPU

4 GB RAM
64 GB Flash

Note: Learn more about Android Security bulletin information

High Performance 2D Scanner

The EA630 Plus features a built-in a megapixel 2D scanning engine (Honeywell N4603) with a laser aimer that can read high-resolution codes (down to 3 mils on Code 39 1D barcode), and even 20mil Code 39 at a 30in distance (typical read range). Moreover, it enhances visibility to accurately capture most 1D / 2D barcodes even in low light or bright light environments.
Megapixel
Barcode Scanner		Laser AimerLow Light

Visibility

High Screen to Body Ratio



The EA630 Plus rugged smartphone has a 6-inch 18:9 display with an impressive 80% screen to body ratio. The screen can be lit up to a maximum of 450nits brightness for easy viewing in outdoor environments.







6″
Display		18:9Ratio80 %Screen to body ratio450 nitsBrightness

Gorilla® Glass 5

Touch Display

Specially Designed for Portability

The EA630 Plus combines compact and durable design features that make it an ideal tool to increase efficiency in retail, hospitality, and healthcare environments.
0.54in
Slim design		8oz
Lightweight

Long-Lasting Battery Life

The EA630 Plus’ powerful 4000mAh battery is designed to provide up to 14 hours of operating time, giving you the flexibility to work through the day.
Up to 14 hours
Operating Time		4000 mAh
Battery

Durable Design



The EA630 Plus boasts industrial-level protection with features including IP65 dustproofing & waterproofing, and 4-feet resistance to fall protection. (5-feet with boot case)



IP65
Certification		1.2 mDrop Protection1.5 mDrop Protection
(With Boot case)

All-In-One Functionality

The EA630 Plus has integrated 1D/2D scanning capabilities, as well as an integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 16MP camera. With dual band WiFi, 4G connectivity, Bluetooth® 5, and fast roaming, you can reach the connection speed that makes the EA630 Plus an excellent mobility device to improve productivity in nearly any use case.
1D/2D
Barcode Scanning		16 MPRear Camera4G LTEWLANDual BandsBluetooth® 5NFC
RFID reader / Writer

Ergonomic Gun Grip Design

The EA630 Plus Gun Grip allows users to add value to their device with Unitech’s unique UHF RFID gun grip or 2D long-range gun grip. Simply attach it and enjoy a convenient way to improve standard barcode scanning, RFID scanning, or 2D long-range scanning in inventory tracking and picking solutions.
——-   Unique Gun Grips for Optional Choice      ——-
Standard
Easy to hold		2D LR- 25 m distanceRFID
– 6 m distance
– 750 tags / second

Optical Character Recognition (OCR)

The EA630 Plus provides Optical Character Recognition (OCR) technology when used with Unitech’s USS software to streamline your tedious typing processes and minimize typing mistakes when entering data. Our OCR technology allows users to easily convert numbers or characters to digital formats from cardboards, paperwork, electronic chips, and any other readable surface.



AirlineManufacturingLogistics
✔Airline Ground Services｜Read ID numbers from passports

✔Manufacturing｜Read vehicle registration numbers and electronic chips

✔ Logistics&Retail｜Read lot numbers printed on the package





SmartPA: Better Audio Output

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer.The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.







Power Amplifier

Better Audio Output

Built-in Algorithm

Lessen Circuit / Temperature Damage

Specification

Operating System

  • OSAndroid 11
  • GMS CertifiedGMS certified
  • CPU2GHz, Qualcomm® Snapdragon™ 662, 64bits Octa-core Processor
  • Memory4 GB RAM / 64 GB Flash
  • Languages SupportedEnglish, Simplified Chinese, Traditional Chinese, Japanese,
    Spanish, German, French, Italian, Portuguese, Korean and
    multiple other languages
  • OtherInput Chinese/ English
    Supports handwriting and soft keyboard

Display

  • Screen Size6”, 18:9 Full-HD (2160 x 1080) color screen (450nits brightness)
  • TouchpanelGorilla® Glass 5 with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance

Buttons / Keypad

  • Buttons / Keypad5 keys – Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button

Camera

  • Camera5 MP Front camera,
    16 MP Rear with auto-focus function and flash

Indicator Type

  • TypeLED, Speaker, Vibrator

Symbologies

  • 1D Barcodes1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
    128, Code 32, Code 93, Codabar/NW7, Interleaved 2
    of 5, Matrix 2 of 5, MSI, Trioptic,
  • 2D Barcodes2D : PDF417, MicroPDF417, GS1 Composite ,
    Code11, Aztec Code, Data Matrix, QR Code, Micro
    QR Code, MaxiCode, Han Xin Code, DOT Code    Postal : Intelligent Mail Barcode, Postal-4i, Australian
    Post, Japanese Post, Netherlands (KIX) Post,
    Postnet, Planet CodeOCR : OCR-A, OCR-B, E13B (MICR)

RFID

  • HF RFIDSupports HF/NFC
    Frequency 13.56Mhz
    Supports: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092) compliance

Communication

  • Bluetooth®Bluetooth® 5
  • WLANWireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz
    Supports 802.11d/e/h/i/k/r/v, fast roaming
    Compliant with WEP, WPA and IEEE 802.11i WPA2
  • WWANGSM: 850,900,1800,1900 MHzWCDMA: Band 1, Band 2, Band 5, Band 8LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B
    12/B17/B19/B20/B28)
    TDD-LTE (B38/B39/B40/B41)
    Dual nano SIM Slot
  • GPSAGPS, GPS, GLONASS, Beidou, Galileo
  • SensorsGyroscope, Light sensor, e-Compress, Proximity sensor, accelerometer sensor

I/O Interfaces

  • USBUSB 3.1 (type-C) support USB OTG
    Ethernet/USB-Host via cradle
  • OTGYes, over USB Type-C
  • POGO PinPogoPin backside: Supports Unitech gun-grip, UHF reader accessories
    PogoPin bottom: Charging via cradle
  • SIM SlotDual nano SIM Slot
  • Expansion SlotMicroSD, up to 256 GB
  • AudioOne speaker with Smart PA (95±3dB @ 10cm), One receiver ,
    Dual noise-cancelling microphones

Enclosure

  • Dimensions ( W x D x H )16.1in x 3in x 0.5in
  • Weight8.18oz (with battery)

Durability

  • Drop Specification4ft, 5ft with boot case
  • SealingIP65
  • Tumble TestMIL-STD 810G

Environmental

  • Operating Temperature14°F to 122°F
  • Storage Temperature-22°F to 158°F (without battery)
  • Charging Temperature32°F to 113°F
  • Relative Humidity10% ~ 90% (non-condensing)

Power Source

  • Main Battery3.85V, 4000mAH Li-polymer battery
    RTC battery: back up 4 days

Software

  • MDM SoftwareSOTI, AirWatch and MoboLink

Regulatory Approvals

  • Regulatory ApprovalsCE, FCC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, N-Mark

What’s In the Box

  • Standard Package Contents■ EA630Plus Terminal
    ■ USB 3.0 Cable (Type C)
    ■ Adapter (US)
  • The basic package contents■ EA630Plus Terminal

Accessories

  • Accessories■ USB 3.0 type-C cable(Support Quick Charge) (PN#1550-905908G)
    ■ Quick charge adaptor via USB type-C cable (PN#1010-900061G US plug/ #1010-900062G EU plug)
    ■ hand strap (PN#5400-900040G)
    ■ Boot case (PN# 3210-900023G)
    ■ 9H glass screen protector (PN#401546G/ #5400-900037G. 10pcs with packing)
    ■ Battery 3.85V 4000mAh (PN#1400-900057G)
    ■ Stylus (8mm PN# 384896G, 5.5mm #386534G)
    ■ Coiled strap (PN# 383642G)
    ■ Standard gun grip (PN# 5500-900075G)
    ■ Standard gun grip for terminal with boot case (PN#5500-900076G)
    ■ RG630 UHF gun grip (PN# 5500-900092G (US), PN# 5500-900093G (EU))
    ■ RG630 UHF gun grip for terminal with boot case (PN# 5500-900094G (US), PN# 5500-900095G (EU))
    ■ Single Slot Charging Cradle*(PN# 5000-900072G)
    ■ Single Slot USB Cradle*(PN# 5000-900070G)
    ■ Single Slot Ethernet Cradle*(PN# 5000-900071G)
    ■ Adaptor with plugs for 1-slot cradle (PN#1010-900057G)
    ■ Active car kit /vehicle cradle (PN#5000-63C0001G)
    ■ 4-Slot Terminal Charging Cradle*(PN#5000-900075G (PSU+US cord) , PN#5000-900076G (PSU Only))
    ■ 4-Slot Ethernet Cradle*(PN#5000-900077G (PSU+US cord), PN#5000-900078G (PSU Only))
    ■ Power supply for 4-slot Cradle (PN# 1010-900032G(US), PN#1010-900031G(EU))
    ■3-Pin Power Cord (UK) PN#1550-602689G
    ■3-Pin Power Cord(EU)PN#1550-602333G
    ■3-Pin Power Cord(US)PN#1010-601551G
    * Fit the EA630 with and without the boot on

Warranty

  • Warranty15 Months
